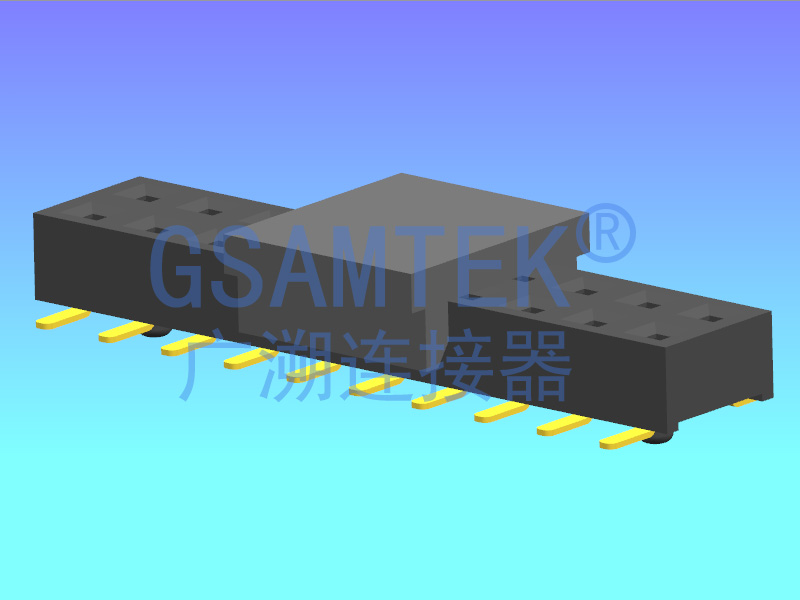

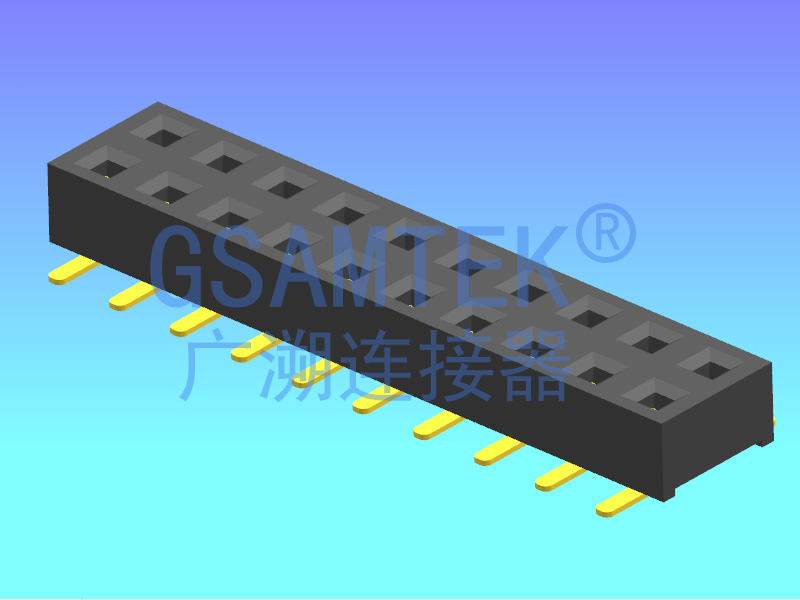

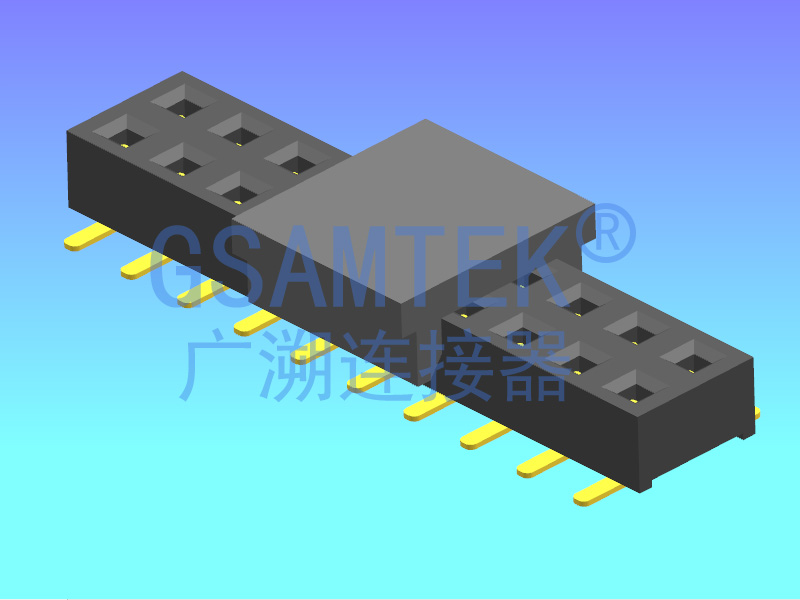

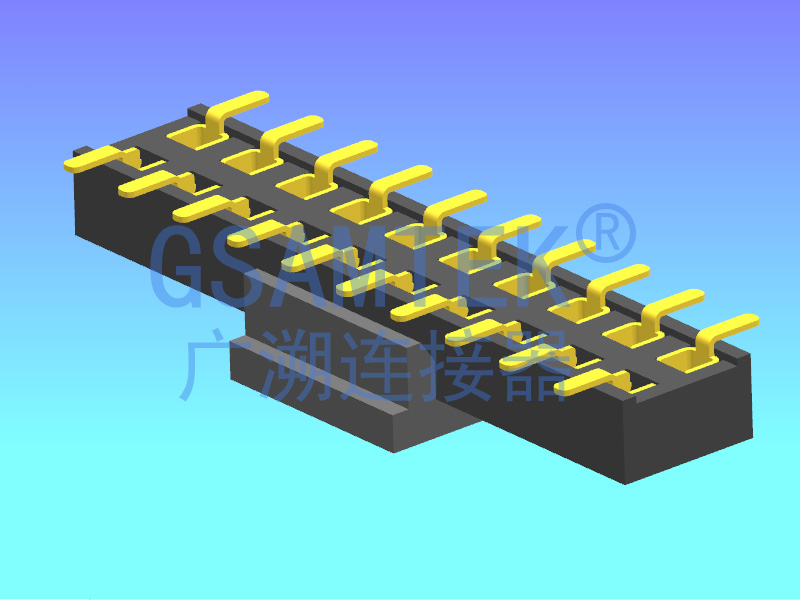

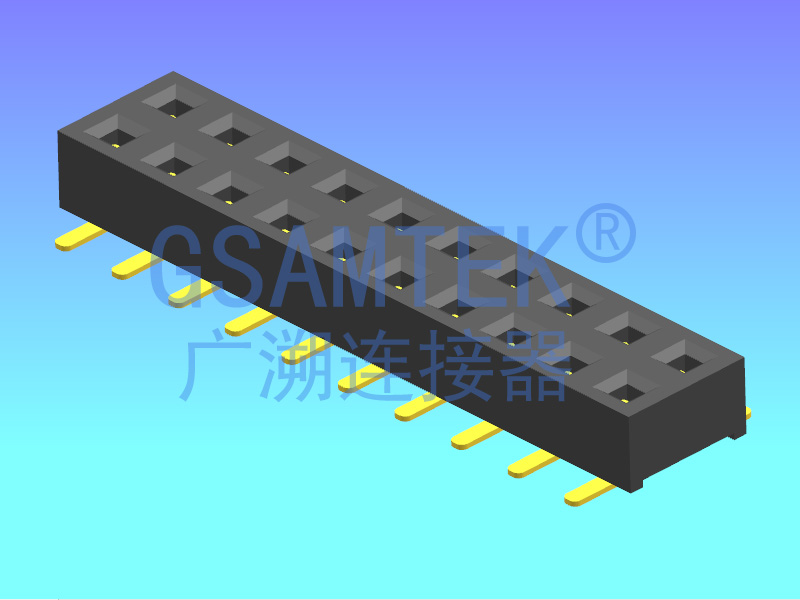

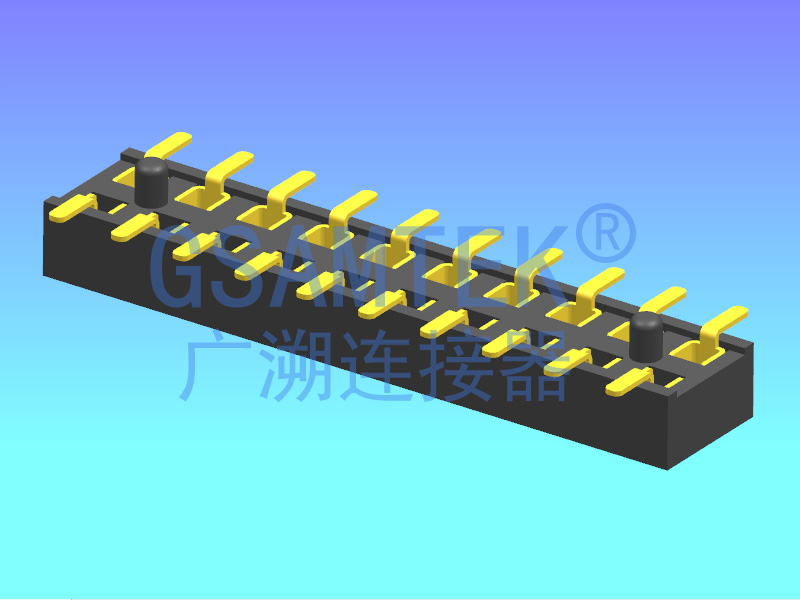

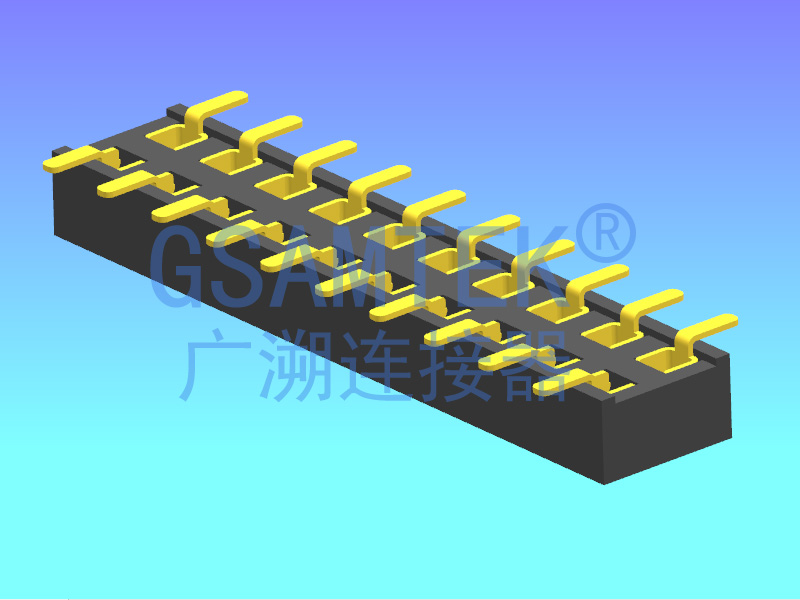

双排SMT排母 PH2.0 H2.2 U型 W4.0
产品分类：间距2.0mm
PH2.0排母：
价格：￥0.01~
简介：
PIN 数：2*2P~2x40P
塑胶高 H：2.2mm
排 数：双排、
折弯类型：SMT
材 质：PA6T/PA9T/LCP
端子形状：U型
详细介绍
&
Material:
Contact Material: Brass/Phosphor Bronze
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 3.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 1000V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Wave soldering temperature: 250±5°C,10s
