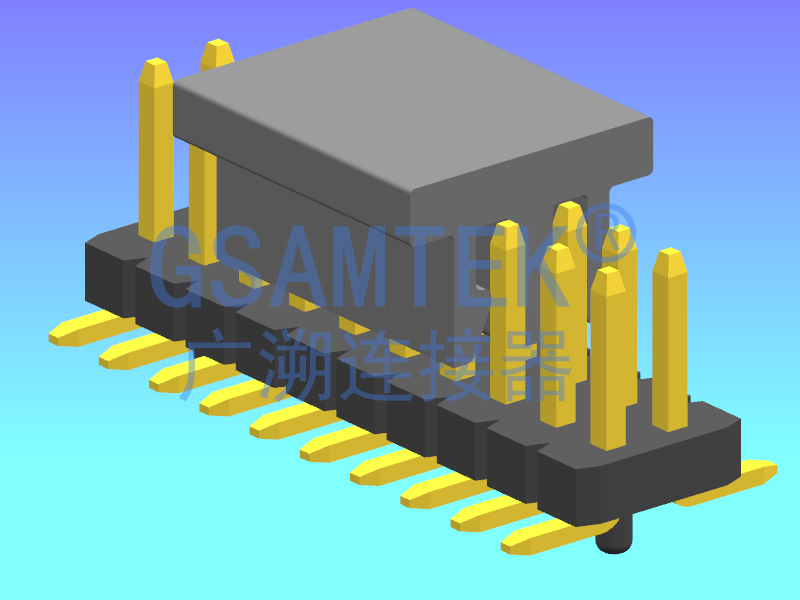

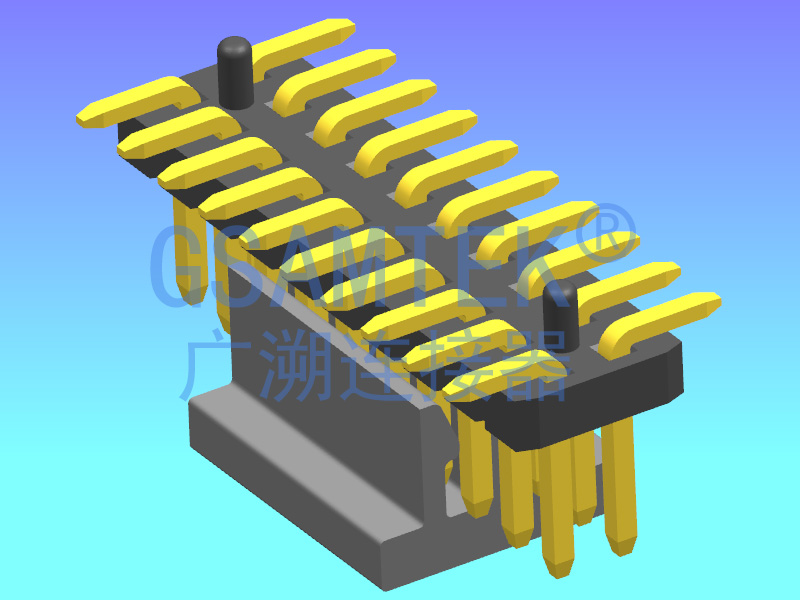

双排SMT排针PH1.27 H1.0 W3.40
产品分类：间距1.27mm
PH1.27排针：
PIN 数：2*2P~2x50P
塑胶高 H：1.0/1.5/2.0/2.5mm
排 数：双排、
折弯类型：180度/90度/SMT
材 质：PA6T/PA9T/LCP
四 方 针：0.40mm
详细介绍
&
Material:
Contact Material: Brass
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 1.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥500MΩ at V=100V
Withstanding Voltage: 300V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Reflow soldering temperature: 260±5°C,10s
